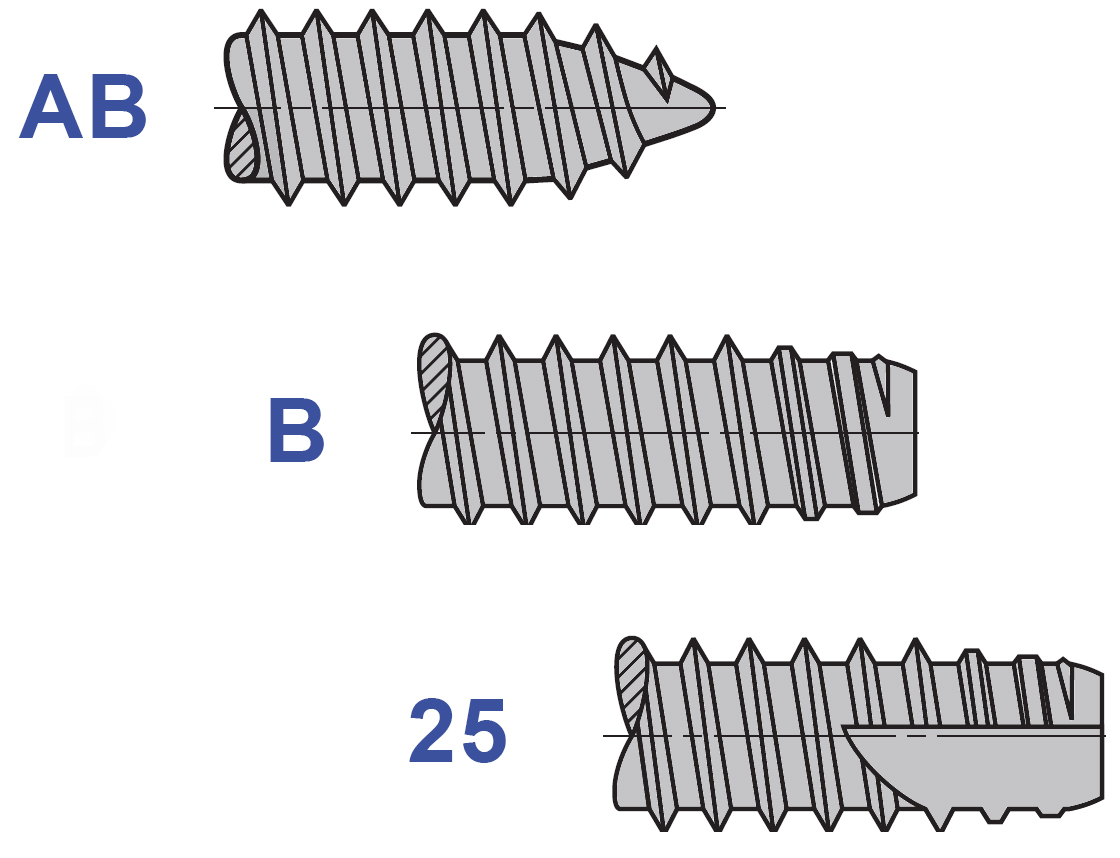

Suggested Test Plate Thicknesses & Hole |
||||||||
Normal Screw Size & No. of Threads per Inch |
Thickness |
Hole Size | ||||||
Gage | Max | Min | Drill Size |
Hole Diam. |
||||
2-32 | 18 | .0500 | .0460 | 48 | .0760 | |||
3-28 | 18 | .0500 | .0460 | 46 | .0810 | |||
4.24 | 18 | .0500 | .0460 | 44 | .0860 | |||
5-20 | 18 | .0500 | .0460 | 36 | .1065 | |||
6-20 | 14 | .0770 | .0730 | 32 | .1160 | |||
7-19 | 14 | .0770 | .0730 | 30 | .1285 | |||
8-18 | 14 | .1270 | .1230 | 29 | .1360 | |||
10-16 | 1/8 | .1270 | .1230 | 21 | .1590 | |||
12-14 | 1/8 | .1270 | .1230 | 3/16 | .1875 | |||
1/4-14 | 3/16 | .1905 | .1845 | 5.5 mm | .2165 | |||
5/16-12 | 3/16 | .1905 | .1845 | I | .2720 | |||
3/8-12 | 3/16 | .1905 | .1845 | 21/64 | .3281 |

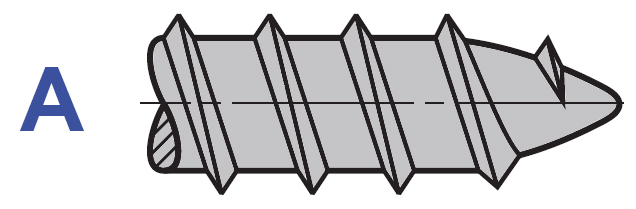

Suggested Hole Sizes for Type A |
||
Normal Screw Size |
Hole Size | |
Drill Size |
Hole Diam. |
|
5-20 | #36 | 0.1065 |
6-18 | #32 | 0.1160 |
7-16 | #30 | 0.1285 |
8-15 | #29 | 0.1360 |
9-14 | #26 | 0.1470 |
10-12 | #21 | 0.1590 |
12-11 | 3/16 | 0.1875 |
14-10 | 5.5mm | 0.2165 |
20-9 | L | 0.2900 |
24-9 | 11/32 | 0.3438 |
Notes Regarding Hole Preparation:
- Drilling, core drilling, punching, piercing, and extruding preformed holes are all options. Edge burrs should be removed if they pose a problem during assembly. The ability to support a load is affected by wall ovality and/or taper.
- The torque that free-standing screws must withstand without showing signs of damage or failure is referred to as "minimum torsional strength."

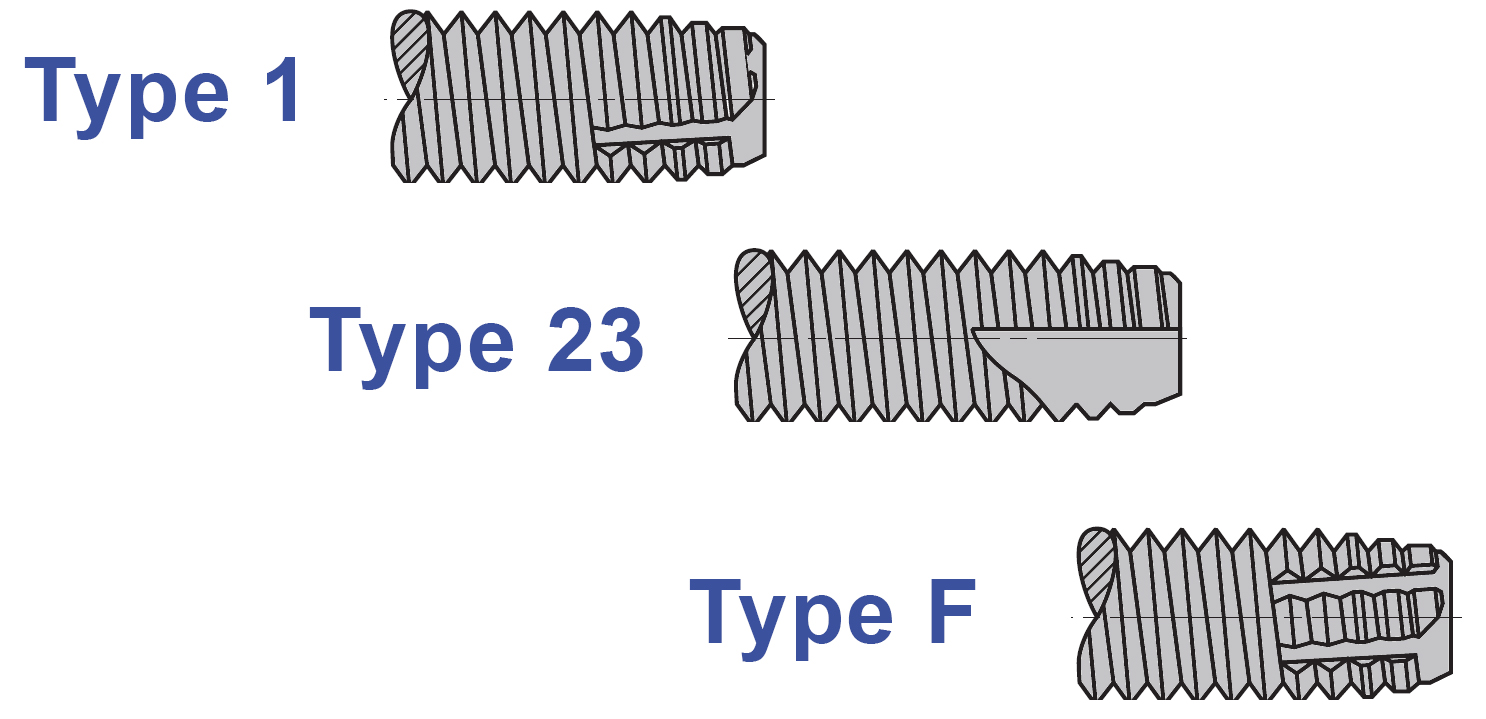

Suggested Test Plate Thicknesses & Hole |
||||||||
Normal Screw Size & Threads Pitch |
Thickness |
Hole Size | ||||||
Gage | Max | Min | Drill Size |
Hole Diam. |
||||
2-56 | 18 | .0800 | .0760 | 49 | 0.0730 | |||
3-48 | 18 | .0920 | .0920 | 46 | 0.0810 | |||
4-40 | 18 | .1110 | .1070 | 41 | 0.0960 | |||
5-40 | 18 | .1110 | .1070 | 37 | 0.1010 | |||
6-32 | 14 | .1425 | .1385 | 31 | 0.1200 | |||
8-32 | 14 | .1905 | .1845 | 26 | 0.1470 | |||
10-24 | 1/8 | .1905 | .1845 | 17 | 0.1730 | |||
10-32 | 1/8 | .1905 | .1845 | 16 | 0.1770 | |||
12-24 | 1/8 | .1905 | .1845 | 8 | 0.1990 | |||
1/4-20 | 3/16 | .2530 | .2470 | 1 | 0.2280 | |||
5/16-18 | 3/16 | .3155 | .3095 | L | 0.2900 | |||
3/8-16 | 3/16 | .3780 | .3720 | T | 0.3580 | |||
1/2-13 | 3/16 | .471 | .443 | 29/64 | 0.4531 |

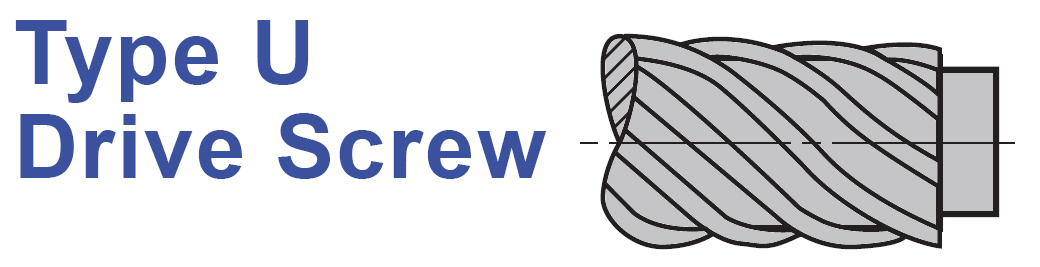

Recommended Hole Sizes -- Type-U Drive Screws |
|||
Screw Size |
Drill Size No. |
Hole Diameter | |
- | - | - | |
00 | 55 | .052 | |
0 | 51 | .067 | |
2 | 44 | .086 | |
4 | 37 | .104 | |
6 | 31 | .120 | |
7 | 29 | .136 | |
8 | 27 | .144 | |
10 | 20 | .161 | |
12 | 11 | .191 | |
14 | 2 | .221 |

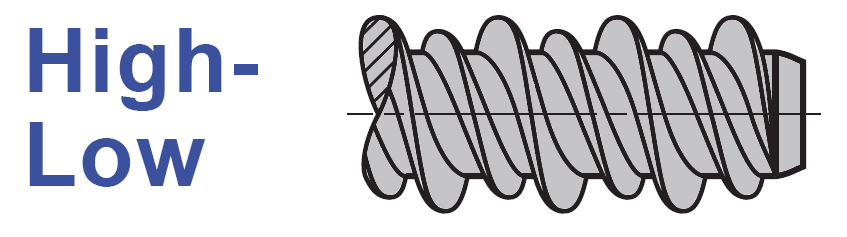

Suggested Hole Sizes -- High-Low Screws |
||||
Normal Screw Size & No. of Threads per Inch |
Pilot Hole Diameter |
|||
Up to 200,000 P.S.I. |
200,000-400,000 |
|||
2-32 | .0670 | .0700 | ||
3-28 | .0730 | .0781 | ||
4-24 | .0810 | .0860 | ||
5-20 | .0935 | .0995 | ||
6-19 | .1015 | .1100 | ||
7-19 | .1200 | .1250 | ||
8-18 | .1200 | .1285 | ||
10-16 | .1360 | .1440 | ||
12-16 | .1570 | .1660 | ||
1/4-15 | .1890 | .2010 | ||
5/16-14 | .2380 | .2500 |
