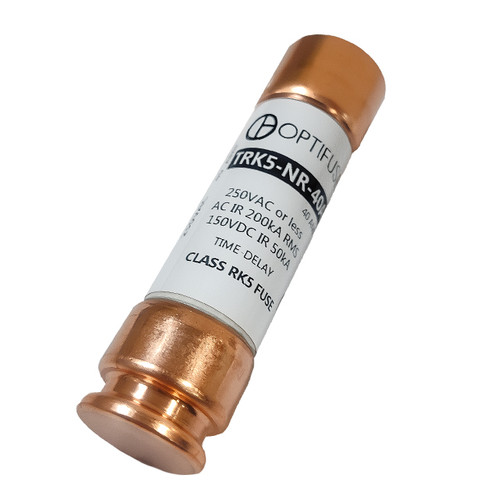

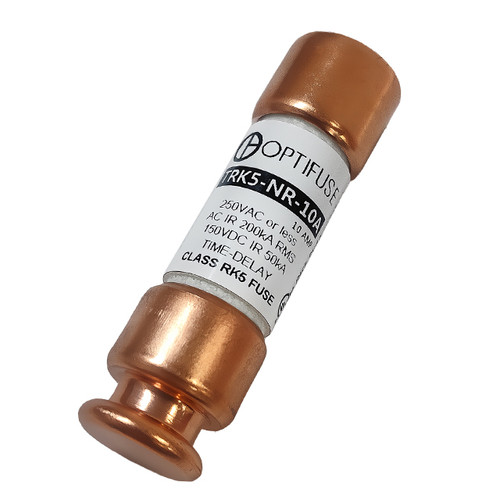

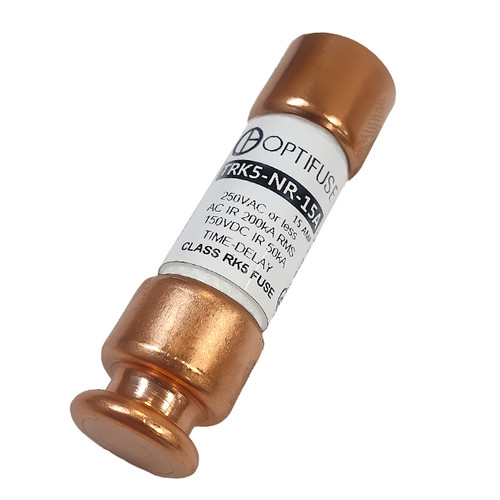

UL Class RK5 - Branch circuit protection
Current Limiting
Dual element time delay
Voltage Rating - 250VAC 150VDC
Current Rating - 10A to 60A
Interrupt Rating - 200000A AC 50000A DC
Features and Applications
- UL listed Class RK5 fuses are the industry's most popular choice for motor circuit protection. These dual-element fuses offer superior time-delay performance, making them ideal for circuits that experience temporary motor overloads and surge currents, providing both high-performance short-circuit and overload protection.
- The rejection feature allows Class RK5 fuses to be installed in specialized fuse clips and holders that prevent the use of older, less reliable fuse types.
- It is rated at 250VAC / 150VDC with a 200K amp AC interrupting capacity and 50K amp DC interrupting capacity. Current ratings range from 10A to 60A.
