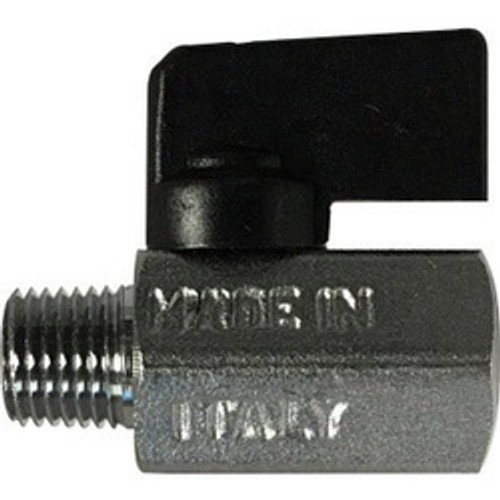

Midland Industries 46903I Miniature Ball Valve, 1/4 in Nominal, MPT x FPT, 235 psi Pressure, 32 to 176 deg F (Qty. 1)

SKU:
MI-46903I
Weight:
0.23 LBS
(No reviews yet) Write a Review
$16.51
Midland Industries 46903I Miniature Ball Valve, 1/4 in Nominal, MPT x FPT, 235 psi Pressure, 32 to 176 deg F (Qty. 1)

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$16.51
Add to Wish List
MIDLAND INDUSTRIES Miniature Ball Valve, 1/4 in Nominal, Connection Type: MPT x FPT, 235 psi, 1-3/4 in L Inlet to Outlet, 1.17 in Top to Inlet Center, 1/4 Turn Handle Operator, Material Standard: CW517N, CW614N, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Steel Stem Nut/NBR O-Ring/Steel Screw Trim, PTFE Packing, Aluminum Handle, Brass Ball, Lead-Free/Contains Lead: Contains Lead, 32 to 176 deg F, Import, Additional Information: 1/4-18 Thread Size, 0.200 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Brass
Body Material:
Brass
Connection Type:
MPT x FPT
Handle Material:
Aluminum
Inlet to Outlet Length:
1-3/4"
Lead-Free/Contains Lead:
Contains Lead
Material Standard:
CW517N, CW614N
Operator Type:
1/4 Turn Handle
Packing Material:
PTFE
Seal Material:
PTFE
Seat Material:
PTFE
Stem Material:
Brass
Temperature Rating:
32 to 176 deg F
Top to Inlet Center:
1.17"
Trim Material:
Steel Stem Nut/NBR O-Ring/Steel Screw
Operating Pressure [max]:
235 psi
Product Type:
Male x Female Miniature Ball Valves
Size:
1/4"
Special Interest:
Import
Style:
Male x Female Chrome Plated Mini Ball Valve
