Midland Industries

Midland Industries 940 LF Series 940411LF Ball Valve, 4 in Nominal, Press x Press, 250 psi WOG Pressure (Qty. 1)

SKU:
MI-940411LF
Weight:
18.47 LBS
(No reviews yet) Write a Review
$1,174.10
Midland Industries 940 LF Series 940411LF Ball Valve, 4 in Nominal, Press x Press, 250 psi WOG Pressure (Qty. 1)

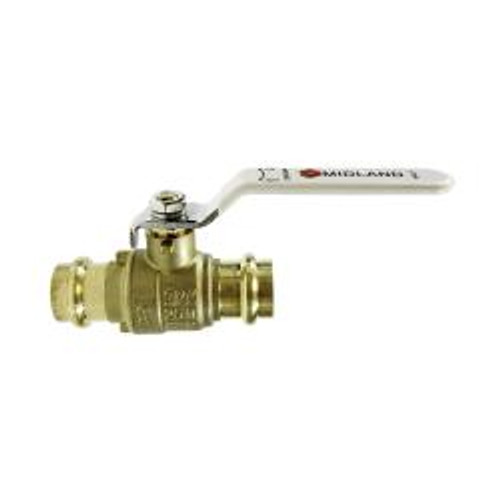

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$1,174.10
Add to Wish List
MIDLAND INDUSTRIES Ball Valve, Series: 940 LF Series, 4 in Nominal, Connection Type: Press x Press, Full Port, 250 psi WOG, 9.88 in L Inlet to Outlet, 5.49 in Top to Inlet Center, Handle Operator, Flow Coefficient (Cv): 783.88 Cv, Lead-Free Brass Body, PTFE Seat, Stainless Steel Stem, PTFE Seal, Brass Packing Nut/NBR Stem O-Ring and Body O-Ring/EPDM Press O-Ring/Ferrum/Zinc-Plated Locknut and Lock Washer Trim, PTFE Packing, Chrome-Plated Ferrum Handle, Stainless Steel Ball, Lead-Free/Contains Lead: Lead-Free, 9.88 in L, Import, Additional Information: 250 psi CWP Pressure

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Stainless Steel
Body Material:
Lead-Free Brass
Connection Type:
Press x Press
Flow Coefficient (Cv):
783.88 Cv
Handle Material:
Chrome-Plated Ferrum
Inlet to Outlet Length:
9.88"
Lead-Free/Contains Lead:
Lead-Free
Operator Type:
Handle
Packing Material:
PTFE
Port Type:
Full
Seal Material:
PTFE
Seat Material:
PTFE
Series:
940 LF Series
Stem Material:
Stainless Steel
Top to Inlet Center:
5.49"
Trim Material:
Brass Packing Nut/NBR Stem O-Ring and Body O-Ring/EPDM Press O-Ring/Ferrum/Zinc-Plated Locknut and Lock Washer
Operating Pressure [max]:
250 psi WOG
Product Type:
Press Ball Valves
Size:
4"
Special Interest:
Import
Style:
LF Press Ball Valves
