Midland Industries

Midland Industries 940174L Ball Valve, 3/4 in Nominal, FPT x FPT, 600 psi WOG Pressure, -22 to 302 deg F (Qty. 1)

SKU:
MI-940174L
Weight:
0.67 LBS
(No reviews yet) Write a Review
$23.95
Midland Industries 940174L Ball Valve, 3/4 in Nominal, FPT x FPT, 600 psi WOG Pressure, -22 to 302 deg F (Qty. 1)

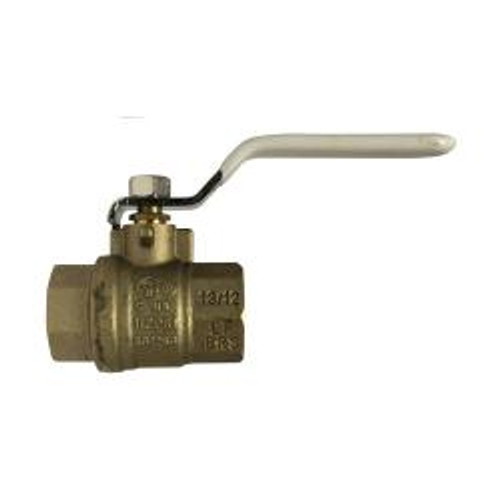

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$23.95
Add to Wish List
MIDLAND INDUSTRIES Ball Valve, 3/4 in Nominal, Connection Type: FPT x FPT, Full Port, 600 psi WOG, 2.48 in L Inlet to Outlet, 2.24 in Top to Inlet Center, Locking Handle Operator, Forged Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass Gland/Steel Nut and Spring Inseat Trim, Steel Handle, Chromium-Plated Brass Ball, -22 to 302 deg F, 2.48 in L, Import, Additional Information: 150 psi WSP Saturated Steam Pressure, 3 /4-1 4 Thread Size, 0.783 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Chromium-Plated Brass
Body Material:
Forged Brass
Connection Type:
FPT x FPT
Handle Material:
Steel
Inlet to Outlet Length:
2.48"
Operator Type:
Locking Handle
Port Type:
Full
Seal Material:
PTFE
Seat Material:
PTFE
Stem Material:
Brass
Temperature Rating:
-22 to 302 deg F
Top to Inlet Center:
2.24"
Trim Material:
Brass Gland/Steel Nut and Spring Inseat
Length:
2.48"
Operating Pressure [max]:
600 psi WOG
Product Type:
Full Port Ball Valves
Size:
3/4"
Special Interest:
Import
Style:
Locking Handle
