Midland Industries

Midland Industries 940462 Side Outlet Ball Valve, 3/4-in Nominal, FPT, 3-Way -Port/Way, 600 psi WOG Pressure (Qty. 1)

SKU:
MI-940462
Weight:
0.72 LBS
(No reviews yet) Write a Review
$86.41
Midland Industries 940462 Side Outlet Ball Valve, 3/4-in Nominal, FPT, 3-Way -Port/Way, 600 psi WOG Pressure (Qty. 1)

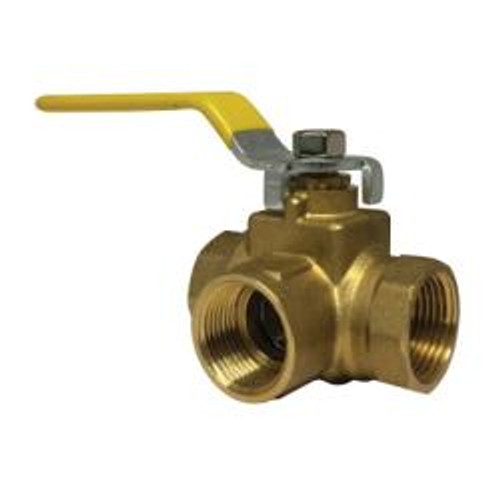

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$86.41
Add to Wish List
MIDLAND INDUSTRIES Side Outlet Ball Valve, 3/4 in Nominal, Connection Type: FPT, Full Port, 600 psi WOG, 2.16 in Top to Inlet Center, Number of Ports/Ways: 3-Way, 90-deg Rotation Lever Handle Operator, Forged Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass Impacted Nut/Steel Stem Nut/NBR O-Ring Trim, Steel Handle, Brass Ball, 0 to 230 deg F, 4.31 in L, Import, Additional Information: 150 psi WSP Pressure, 3/4-14 Thread Size

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Brass
Body Material:
Forged Brass
Connection Type:
FPT
Handle Material:
Steel
Number of Ports/Ways:
3
Operator Type:
90-deg Rotation Lever Handle
Port Type:
Full
Seal Material:
PTFE
Seat Material:
PTFE
Stem Material:
Brass
Temperature Rating:
0 to 230 deg F
Top to Inlet Center:
2.16"
Trim Material:
Brass Impacted Nut/Steel Stem Nut/NBR O-Ring
Operating Pressure [max]:
600 psi WOG
Product Type:
3-Way Ball Valves
Size:
3/4"
Special Interest:
Import
Style:
Side Outlet
Applications:
Water, Oil, Gas
Length:
4.31"
