Midland Industries

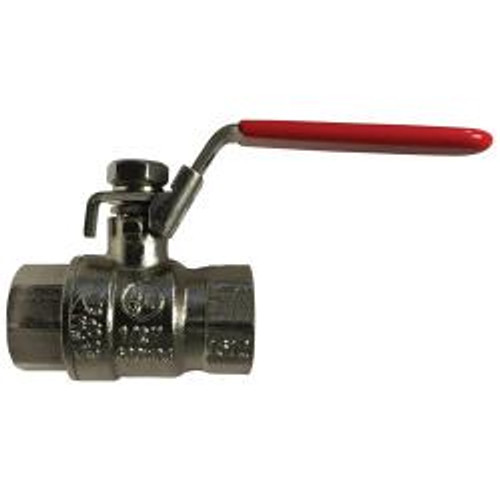

Midland Industries 941123NP Ball Valve, 1/2 in Nominal, FPT x FPT, 600 psi WOG Pressure, -20 to 300 deg F (Qty. 1)

SKU:
MI-941123NP
Weight:
0.47 LBS
(No reviews yet) Write a Review
$23.80
Midland Industries 941123NP Ball Valve, 1/2 in Nominal, FPT x FPT, 600 psi WOG Pressure, -20 to 300 deg F (Qty. 1)

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$23.80
Add to Wish List
MIDLAND INDUSTRIES Ball Valve, 1/2 in Nominal, Connection Type: FPT x FPT, Full Port, 600 psi WOG, 2.24 in L Inlet to Outlet, 2.02 in Top to Inlet Center, Locking Handle Operator, Flow Coefficient (Cv): 18.55 Cv, Forged Brass Body, PTFE Seat, Stainless Steel Stem, Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring Trim, PTFE Packing, Stainless Steel Handle, Stainless Steel Ball, Nickel-Plated, -20 to 300 deg F, 2.24 in L, Import, Additional Information: 150 psi WSP Service Pressure, 1/2-14 Thread Size, 29 inHg Vacuum Services, 0.470 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Stainless Steel
Body Material:
Forged Brass
Connection Type:
FPT x FPT
Finish:
Nickel-Plated
Flow Coefficient (Cv):
18.55 Cv
Handle Material:
Stainless Steel
Inlet to Outlet Length:
2.24"
Operator Type:
Locking Handle
Packing Material:
PTFE
Port Type:
Full
Seat Material:
PTFE
Stem Material:
Stainless Steel
Temperature Rating:
-20 to 300 deg F
Top to Inlet Center:
2.02"
Trim Material:
Stainless Steel Handle Nut and Lock Washer/Nickel-Plated Brass Packing Nut/Fluoroelastomer O-Ring
Length:
2.24"
Operating Pressure [max]:
600 psi WOG
Product Type:
Full Port Ball Valves
Size:
1/2"
Special Interest:
Import
Style:
N/P Ball Valve with SS Trim (Workhorse w/ Everything)
