Midland Industries

Midland Industries 941152LF Ball Valve, 3/8 in Nominal, FIP x FIP, 600 psi WOG Pressure, -40 to 365 deg F (Qty. 1)

SKU:
MI-941152LF
Weight:
0.31 LBS
(No reviews yet) Write a Review
$12.89
Midland Industries 941152LF Ball Valve, 3/8 in Nominal, FIP x FIP, 600 psi WOG Pressure, -40 to 365 deg F (Qty. 1)

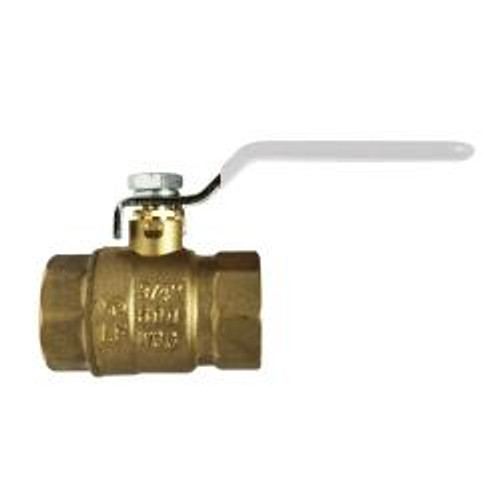

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$12.89
Add to Wish List
MIDLAND INDUSTRIES Ball Valve, 3/8 in Nominal, Connection Type: FIP x FIP, Full Port, 600 psi WOG, 1.73 in L Inlet to Outlet, 1.69 in Top to Inlet Center, Handle Operator, Lead-Free Forged Brass Body, PTFE Seat, Brass Stem, Plated Steel Handle Nut and Lock Washer Trim, PTFE Packing, Plated Steel Handle, Stainless Steel Ball, Lead-Free/Contains Lead: Lead-Free, -40 to 365 deg F, 4.331 in OAL x 2.154 in H, Import, Additional Information: 150 psi WSP Service Pressure, 3/8-18 Thread Size, 29.92 inHg Vacuum Services, 0.320 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Stainless Steel
Body Material:
Lead-Free Forged Brass
Connection Type:
FIP x FIP
Dimensions:
4.331 in OAL x 2.154 in H
Handle Material:
Plated Steel
Inlet to Outlet Length:
1.73"
Lead-Free/Contains Lead:
Lead-Free
Operator Type:
Handle
Packing Material:
PTFE
Port Type:
Full
Seat Material:
PTFE
Stem Material:
Brass
Temperature Rating:
-40 to 365 deg F
Top to Inlet Center:
1.69"
Trim Material:
Plated Steel Handle Nut and Lock Washer
Operating Pressure [max]:
600 psi WOG
Product Type:
Ball Valves
Size:
3/8"
Special Interest:
Import
