Midland Industries

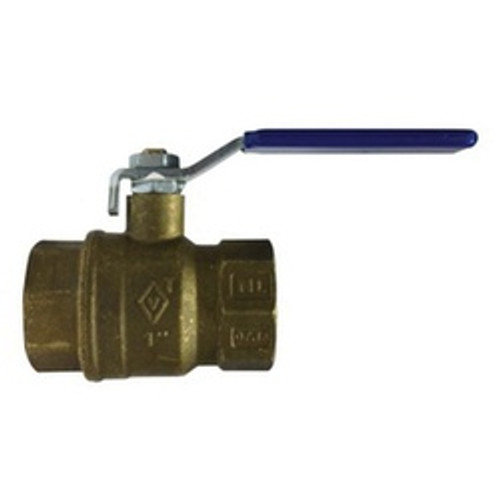

Midland Industries 943233LF Ball Valve, 1/2 in Nominal, FIP x FIP, 600 psi WOG Pressure, -20 to 248 deg F (Qty. 1)

SKU:
MI-943233LF
Weight:
0.40 LBS
(No reviews yet) Write a Review
$20.78
Midland Industries 943233LF Ball Valve, 1/2 in Nominal, FIP x FIP, 600 psi WOG Pressure, -20 to 248 deg F (Qty. 1)

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$20.78
Add to Wish List
MIDLAND INDUSTRIES Ball Valve, 1/2 in Nominal, Connection Type: FIP x FIP, Full Port, 600 psi WOG, 2.09 in L Inlet to Outlet, 1.57 in Top to Inlet Center, 1/4 Turn Handle Operator, Material Standard: CW510L, CW614N, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Steel Stem Nut Trim, PTFE Packing, Carbon Steel Handle, Brass Ball, Lead-Free/Contains Lead: Lead-Free, -20 to 248 deg F, 2.09 in L, Import, Additional Information: 1/2-14 Thread Size, 0.390 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Brass
Body Material:
Brass
Connection Type:
FIP x FIP
Handle Material:
Carbon Steel
Inlet to Outlet Length:
2.09"
Lead-Free/Contains Lead:
Lead-Free
Material Standard:
CW510L, CW614N
Operator Type:
1/4 Turn Handle
Packing Material:
PTFE
Port Type:
Full
Seal Material:
PTFE
Seat Material:
PTFE
Stem Material:
Brass
Temperature Rating:
-20 to 248 deg F
Top to Inlet Center:
1.57"
Trim Material:
Steel Stem Nut
Operating Pressure [max]:
600 psi WOG
Product Type:
Ball Valves
Size:
1/2"
Special Interest:
Import
Length:
2.09"
Style:
LF Ball Valves
