Midland Industries 944102 Mini Ball Valve, 1/4 x 3/8 in Nominal, MIP x FIP, 200 psi WOG Pressure (Qty. 1)

SKU:
MI-944102
Weight:
0.12 LBS
(No reviews yet) Write a Review
$11.84
Midland Industries 944102 Mini Ball Valve, 1/4 x 3/8 in Nominal, MIP x FIP, 200 psi WOG Pressure (Qty. 1)

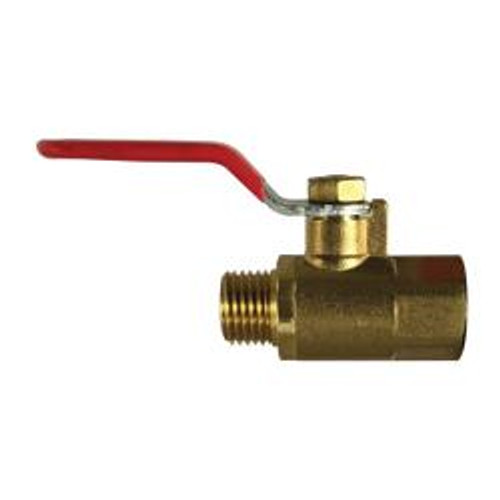

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$11.84
Add to Wish List
MIDLAND INDUSTRIES Mini Ball Valve, 1/4 x 3/8 in Nominal, Connection Type: MIP x FIP, 200 psi WOG, 1.78 in L Inlet to Outlet, 180 deg Operational Handle Operator, Forged Brass Body, PTFE Seat, Brass Stem, Brass Disc, Steel Screw/NBR O-Ring/Steel Nut Trim, Steel Handle, Brass Ball, -20 to 250 deg F, 2-1/2 in L x 1-1/2 in H, Import, Additional Information: 1/4-18 x 3/8-18 Thread Size, 0.120 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Brass
Body Material:
Forged Brass
Connection Type:
MIP x FIP
Disc Material:
Brass
Handle Material:
Steel
Inlet to Outlet Length:
1.78"
Operator Type:
180 deg Operational Handle
Seat Material:
PTFE
Stem Material:
Brass
Temperature Rating:
-20 to 250 deg F
Trim Material:
Steel Screw/NBR O-Ring/Steel Nut
Height:
1.50"
Length:
2.50"
Operating Pressure [max]:
200 psi WOG
Product Type:
Male x Female Miniature Ball Valves
Size:
1/4 x 3/8"
Special Interest:
Import
Style:
Male x Female Mini Ball Valve
