Midland Industries

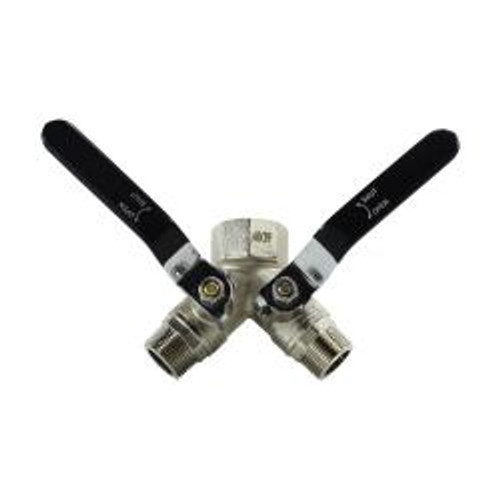

Midland Industries 947126 Wye Vented Ball Valve, 1 x 3/4 in Nominal, FIP x MIP, 3-Way -Port/Way, Brass Body (Qty. 1)

SKU:
MI-947126
Weight:
1.53 LBS
(No reviews yet) Write a Review
$84.01
Midland Industries 947126 Wye Vented Ball Valve, 1 x 3/4 in Nominal, FIP x MIP, 3-Way -Port/Way, Brass Body (Qty. 1)

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$84.01
Add to Wish List
MIDLAND INDUSTRIES Wye Vented Ball Valve, 1 x 3/4 in Nominal, Connection Type: FIP x MIP, Full Port, 250 psi, 2.05 in Top to Inlet Center, Number of Ports/Ways: 3-Way, Lever Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, FKM O-Ring Trim, Stainless Steel Handle, Brass Ball, Nickel-Plated, -40 to 365 deg F, Import, Additional Information: 1-11-1/2 x 3/4-14 Thread Size, 29 inHg Vacuum Rated, 1.480 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
Brass
Body Material:
Brass
Connection Type:
FIP x MIP
Finish:
Nickel-Plated
Handle Material:
Stainless Steel
Number of Ports/Ways:
3
Operator Type:
Lever Handle
Port Type:
Full
Seal Material:
PTFE
Seat Material:
PTFE
Stem Material:
Brass
Temperature Rating:
-40 to 365 deg F
Top to Inlet Center:
2.05"
Trim Material:
FKM O-Ring
Operating Pressure [max]:
250 psi
Product Type:
3-Way Ball Valves
Size:
1" x 3/4"
Special Interest:
Import
Style:
3-Way Wye Vented and Unvented Ball Valve
