Midland Industries 947143 In-Line Check Valve, 1/2 in Nominal, FIP x FIP, Cast Bronze Body, Import (Qty. 1)

SKU:
MI-947143
Weight:
0.56 LBS
(No reviews yet) Write a Review
$76.32
Midland Industries 947143 In-Line Check Valve, 1/2 in Nominal, FIP x FIP, Cast Bronze Body, Import (Qty. 1)

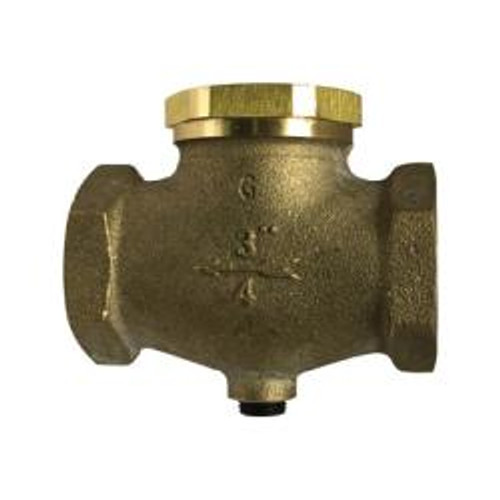

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$76.32
Add to Wish List
MIDLAND INDUSTRIES In-Line Check Valve, 1/2 in Nominal, Connection Type: FIP x FIP, 250 psi, -40 to 450 deg F, 1/8 in NPT Unloader Port, 2-1/2 in L Inlet to Outlet, 1/2 in Opening, Cast Bronze Body, PTFE Seal, Brass Plug/Stainless Steel Spring/HNBR O-Ring/C360 Machined Brass Cap/Polytetrafluoroethylene Poppet Trim, Lead-Free/Contains Lead: Contains Lead, Import, Additional Information: 3 psi Cracking Pressure, Vertical or Horizontal, 2-1/2 in Length, 2.13 in Height, 1/2-14 Thread Size, 0.540 lb Weight

Other Details

Shipping:
Calculated at Checkout
Body Material:
Cast Bronze
Connection Type:
FIP x FIP
Inlet to Outlet Length:
2-1/2"
Lead-Free/Contains Lead:
Contains Lead
Opening Size:
1/2"
Port Type:
1/8 in NPT Unloader
Seal Material:
PTFE
Temperature Rating:
-40 to 450 deg F
Trim Material:
Brass Plug/Stainless Steel Spring/HNBR O-Ring/C360 Machined Brass Cap/Polytetrafluoroethylene Poppet
Operating Pressure [max]:
250 psi
Product Type:
Check Valves
Size:
1/2"
Special Interest:
Import
Style:
In-Line Check Valve, Vertical or Horizontal
