Midland Industries

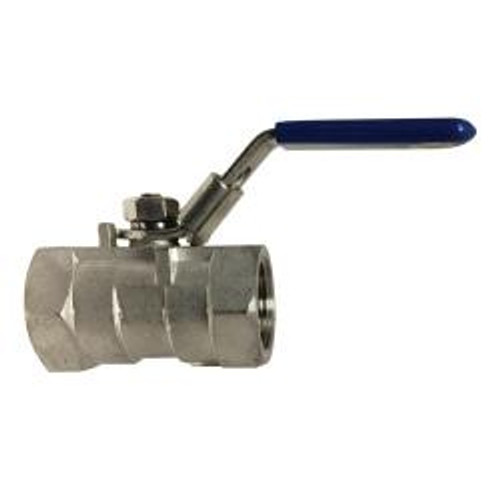

Midland Industries 949108 1-Piece Ball Valve, 2 in Nominal, FNPT x FNPT, 1000 psi Pressure (Qty. 1)

SKU:
MI-949108
Weight:
2.81 LBS
(No reviews yet) Write a Review
$186.34
Midland Industries 949108 1-Piece Ball Valve, 2 in Nominal, FNPT x FNPT, 1000 psi Pressure (Qty. 1)

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$186.34
Add to Wish List
MIDLAND INDUSTRIES 1-Piece Ball Valve, 2 in Nominal, Connection Type: FNPT x FNPT, Standard Port, 1000 psi, 3.94 in L Inlet to Outlet, 2.24 in Top to Inlet Center, Locking Handle Operator, Material Standard: ASTM A351 CF8M, 316 Stainless Steel Body, PTFE Seat, AISI 304 Stainless Steel Nut Stem, PTFE Seal, PTFE Thrust Washer Trim, AISI 304 Stainless Steel Ring Packing, AISI 304 Stainless Steel Handle, 316 Stainless Steel Ball, 3.94 in L, Import, Additional Information: 2-11-1/2 Thread Size, 2.930 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
316 Stainless Steel
Body Material:
316 Stainless Steel
Connection Type:
FNPT x FNPT
Handle Material:
AISI 304 Stainless Steel
Inlet to Outlet Length:
3.94"
Material Standard:
ASTM A351 CF8M
Operator Type:
Locking Handle
Packing Material:
AISI 304 Stainless Steel Ring
Port Type:
Standard
Seal Material:
PTFE
Seat Material:
PTFE
Stem Material:
AISI 304 Stainless Steel Nut
Top to Inlet Center:
2.24"
Trim Material:
PTFE Thrust Washer
Length:
3.94"
Operating Pressure [max]:
1000 psi
Product Type:
1-Piece Ball Valves
Size:
2"
Special Interest:
Import
Style:
One-Piece Standard Port Ball Valve
