Midland Industries

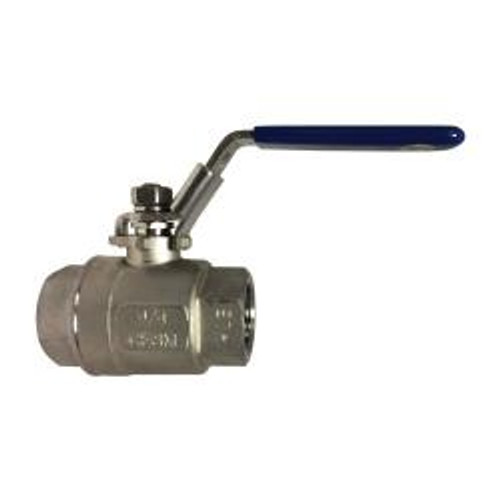

Midland Industries 949164 2-Piece Ball Valve, 3/4 in Nominal, FIP, 1000 psi WOG Pressure, -60 to 450 deg F (Qty. 1)

SKU:
MI-949164
Weight:
1.00 LBS
(No reviews yet) Write a Review
$66.27
Midland Industries 949164 2-Piece Ball Valve, 3/4 in Nominal, FIP, 1000 psi WOG Pressure, -60 to 450 deg F (Qty. 1)

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$66.27
Add to Wish List
MIDLAND INDUSTRIES 2-Piece Ball Valve, 3/4 in Nominal, Connection Type: FIP, Full Port, 1000 psi WOG, 2.68 in L Inlet to Outlet, 2.4 in Top to Inlet Center, Locking Handle Operator, Material Standard: ASTM A351 CF8M, 316 Stainless Steel Body, PTFE Seat, AISI 304 Stainless Steel Stem, PTFE Seal, AISI 304 Stainless Steel Nut and Washer, Gland Nut Trim, PTFE Packing, AISI 304 Stainless Steel Handle, 316 Stainless Steel Ball, -60 to 450 deg F, 2.68 in L, Import, Additional Information: 125 psi Steam Pressure, 1500 psi Hydrostatic Test Pressure, 3/4-14 Thread Size, 0.970 lb Weight

Other Details

Shipping:
Calculated at Checkout
Ball Material:
316 Stainless Steel
Body Material:
316 Stainless Steel
Connection Type:
FIP
Handle Material:
AISI 304 Stainless Steel
Inlet to Outlet Length:
2.68"
Material Standard:
ASTM A351 CF8M
Operator Type:
Locking Handle
Packing Material:
PTFE
Port Type:
Full
Seal Material:
PTFE
Seat Material:
PTFE
Stem Material:
AISI 304 Stainless Steel
Temperature Rating:
-60 to 450 deg F
Top to Inlet Center:
2.4"
Trim Material:
AISI 304 Stainless Steel Nut and Washer, Gland Nut
Length:
2.68"
Operating Pressure [max]:
1000 psi WOG
Product Type:
2-Piece Ball Valves
Size:
3/4"
Special Interest:
Import
Style:
1000 PSI Two Piece Full Port Ball Valve
