Midland Industries

Midland Industries 949275 3-Piece Ball Valve, 1-1/4 in Nominal, FNPT Connection, 1000 psi Pressure, -14 to 302 deg F (Qty. 1)

SKU:
MI-949275
Weight:
0.10 LBS
(No reviews yet) Write a Review
$85.56
Midland Industries 949275 3-Piece Ball Valve, 1-1/4 in Nominal, FNPT Connection, 1000 psi Pressure, -14 to 302 deg F (Qty. 1)

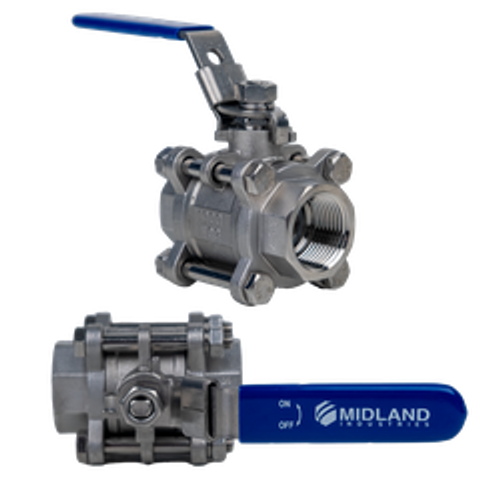

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$85.56
Add to Wish List
MIDLAND INDUSTRIES 3-Piece Ball Valve, 1-1/4 in Nominal, FNPT Connection, Standard Port, 1000 psi, Water, Oil, Gas Media, 3.78 in Inlet to Outlet Length, 3.46 in Top to Inlet Center, 1.26 in Opening, Locking Handle Operator, Material Standard: CF8M, 316 Stainless Steel Body, PTFE Seat, 316 Stainless Steel Stem, PTFE Seal, 304 Stainless Steel Washer and Nut, 304 Stainless Steel Gland, PTFE Thrust Washer Trim, PTFE Packing, 304 Stainless Steel Handle, 316 Stainless Steel Ball, -14 to 302 deg F

Other Details

Shipping:
Calculated at Checkout
Body Material:
316 Stainless Steel
Connection Type:
FNPT
Handle Material:
304 Stainless Steel
Inlet to Outlet Length:
3.78"
Material Standard:
CF8M
Opening Size:
1.26"
Operator Type:
Locking Handle
Packing Material:
PTFE
Port Type:
Standard
Seal Material:
PTFE
Seat Material:
PTFE
Stem Material:
316 Stainless Steel
Temperature Rating:
-14 to 302 deg F
Top to Inlet Center:
3.46"
Trim Material:
304 Stainless Steel Washer and Nut, 304 Stainless Steel Gland, PTFE Thrust Washer
Applications:
Water, Oil, Gas
Operating Pressure [max]:
1000 psi
Product Type:
3-Piece Ball Valves
Size:
1-1/4"
Style:
3-Pc Light-Duty Threaded SS Ball Valve
