Midland Industries

Midland Industries 949474 1-Piece Spring Check Valve, 3/4-in Nominal, MNPT x FNPT, 316 Stainless Steel Body (Qty. 1)

SKU:
MI-949474
Weight:
0.63 LBS
(No reviews yet) Write a Review
$68.97

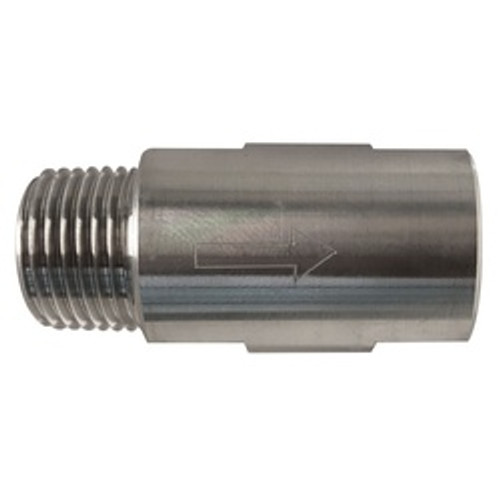

Midland Industries 949474 1-Piece Spring Check Valve, 3/4-in Nominal, MNPT x FNPT, 316 Stainless Steel Body (Qty. 1)

Note: The image displayed is a representation of the product. Product dimensions, finish, head type, and thread length may differ from picture. Products are guaranteed to meet the specification to which they are manufactured. Please email us with any questions.

$68.97
Add to Wish List
MIDLAND INDUSTRIES 1-Piece Spring Check Valve, 3/4 in Nominal, Connection Type: MNPT x FNPT, 1500 psi, -10 to 150 deg C, Gas, Oil, Water Media, 2.677 in L Inlet to Outlet, 316 Stainless Steel Body, Rubber Seal, 304 Stainless Steel Spring and Spring Ring/CF8M Steel Cap/304/316 Stainless Steel Spool Trim, Import, Additional Information: 2 to 3 psi Opening Pressure, 2.677 in Length, 1.417 in Dia, 1.26 in Thread Width, 0.472 in Thread Length, 3/4-14 Thread Size

Other Details

Shipping:
Calculated at Checkout
Body Material:
316 Stainless Steel
Connection Type:
MNPT x FNPT
Inlet to Outlet Length:
2.677"
Maximum Flow Rate:
13.2 gpm
Seal Material:
Rubber
Temperature Rating:
-10 to 150 deg C
Trim Material:
304 Stainless Steel Spring and Spring Ring/CF8M Steel Cap/304/316 Stainless Steel Spool
Applications:
Water, Oil, Gas
Operating Pressure [max]:
1500 psi
Product Type:
SS Check Valves
Size:
3/4"
Special Interest:
Import
Style:
M x F Spring Check Valves
